AN PTFE Hose bundle 10 FT Length and 4 AN PTFE Hose fittings.

This hose bundle works well when a shorter run of hose is needed. Converting from factory hardline in the engine bay or building fuel rail crossover lines.

PTFE lined hose in a 10 Foot length your choice of size & color - includes 4 fittings.

Save Big on Hot Rod fuel hose AN PTFE bundle deals, maybe you don't need a bunch of hose but still want a great deal. This bundle is for you.

Our 10 Ft hose bundles work great if you are running braided hose from a factory hard line within the engine bay, or possibly running only a feed from a frame mounted regulator during an LS swap for example.

Use Hot Rod fuel hose PTFE lined hose and fittings for

  • EFI Conversions
  • LSx Engine Swaps
  • Replacing existing lines
  • Transmission oil cooler lines
  • Engine Oil cooler lines

AN PTFE lined hose has excellent chemical resistance this provides compatibility with many different automotive fluids including Diesel, Gasoline, E85, Ethanol, Transmission fluid, Power steering fluid, and is vacuum compatible.

Default fitting selection

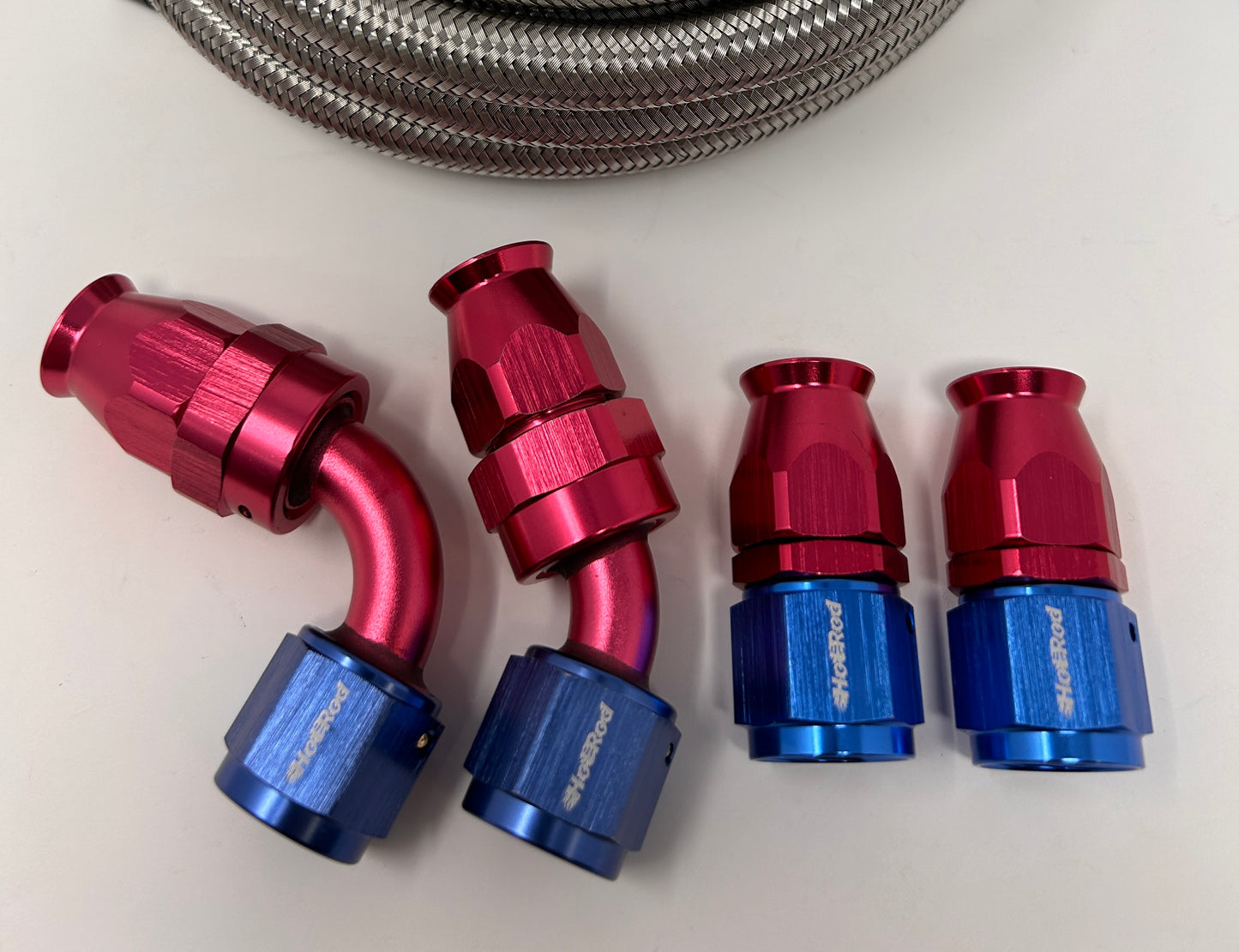

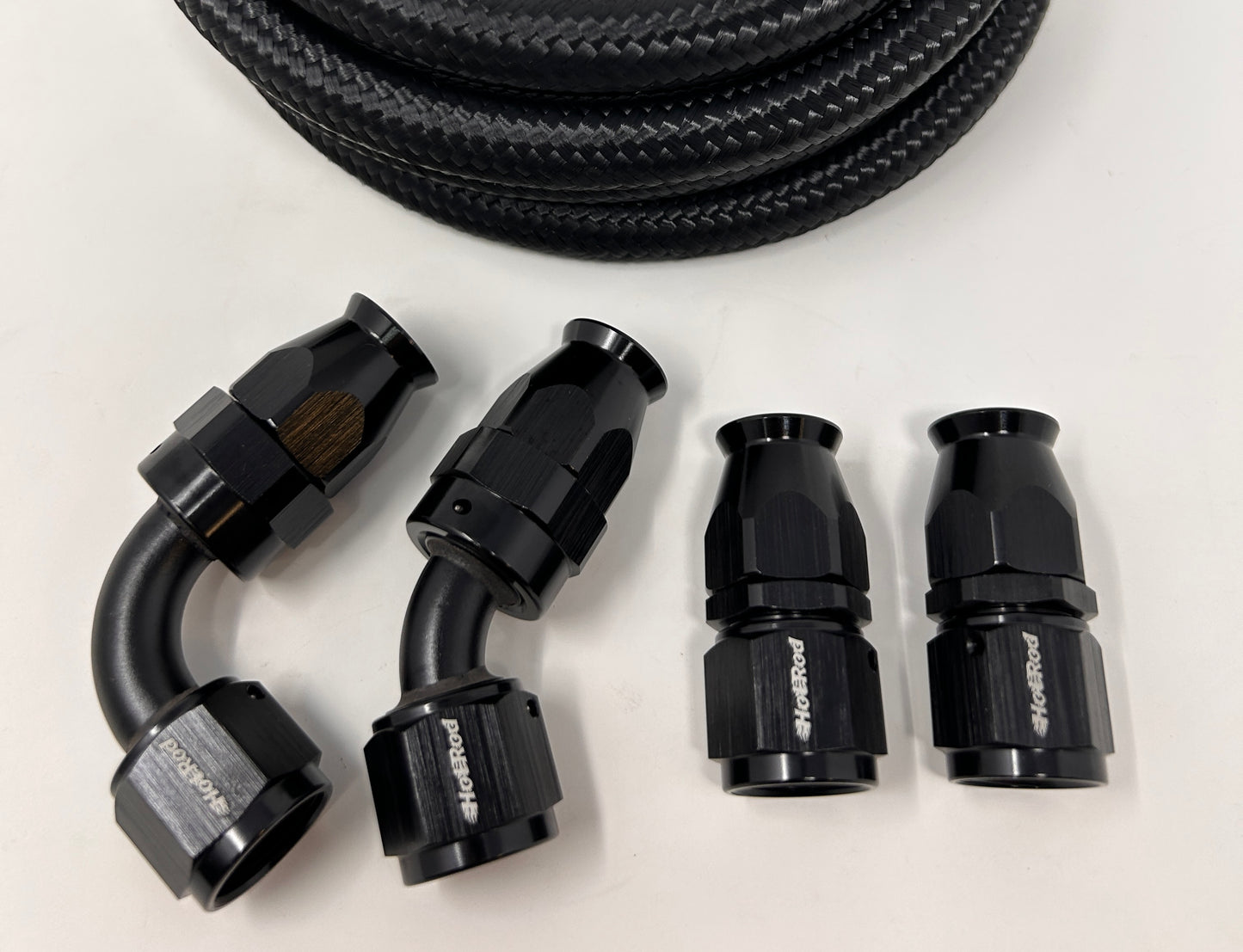

The default fitting selection for our 10FT bundle offers is 2 straight, 1 45 degree, and 1 90 degree fitting. Please provide in the checkout notes if you would like to change from the default selection once you place your order.

Other benefits

Our PTFE hose meets SAE 100R14 Specifications, Hot Rod fuel hose fittings are constructed from 6061 Aluminum alloy and are anodized in sharp colors with a wide variety of colors to choose from.

The Hot Rod fuel hose logo is engraved into the fittings so you can be sure you have an official product.

PTFE hose fluid compatibility

    1. Automatic transmission fluid
    2. Bio-Fuel
    3. Brake fluid
    4. Diesel
    5. E85
    6. Engine coolant
    7. Engine oil
    8. Ethanol
    9. Gasoline
    10. Methanol
    11. Power steering
    12. Vacuum

    Specifications

    Hose Size  Diameter (inside) / (outside) inches Working Pressure Burst Pressure Min Bend Radius
    AN6  0.320 / 0.478 2500 PSI 10000 PSI 2.5"
    AN8 0.420 / 0.550 2000 PSI 8000 PSI 3.5"
    AN10 0.500 / 0.650 1500 PSI 5000 PSI 4.5"



    Operating Temperature

    -60.0 degrees F to 400.0 degrees F
